The Root Causes of Remote Control Lawn Mower Vibration (Where Does It Come From?)

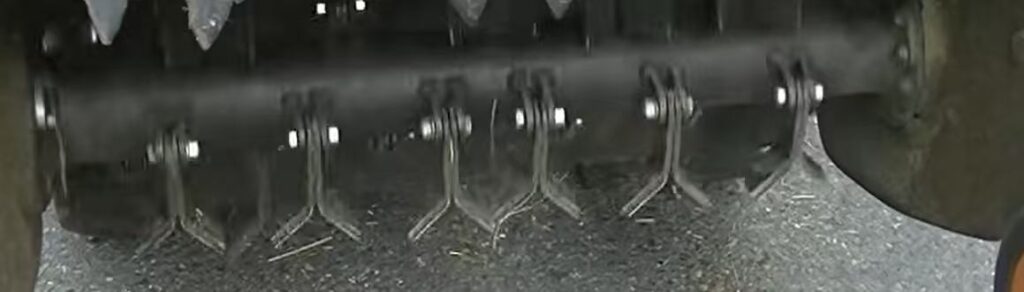

Cutting System Imbalance (The Primary Source) Blade Damage: Broken or missing blades on a mower from extended operational use immediately ruin the dynamic balance of the cutter deck assembly. Blade Shaft Damage: Remote control lawn mower blades hitting hidden rocks or tree stumps cause subtle bends, nicks, or shaft cracks, destroying overall rotational equilibrium across the entire mower cutting structure. Debris Entanglement: Heavy grass, high weeds, metal wire, or tree roots tightly wrapped around the mower cutter deck or blade shaft cause severe eccentric rotation during remote control lawn mower field work.

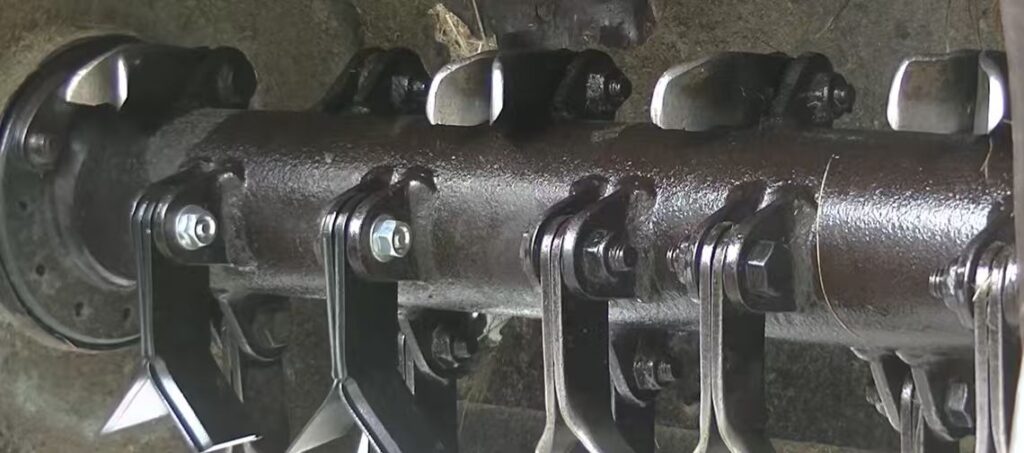

Wear on Fasteners: Loose, unevenly worn, or missing mounting bolts on flail blades or rotary remote control lawn mower cutting hardware create severe dynamic weight displacement. Structural Deformation: Severe impact forces absorbed by the mower deck housing during aggressive slope operations cause minor metal frame warpage and alignment issues for the remote control lawn mower.
- Basic Remote Control Lawn Mower Failures Directly Caused by Vibration (The Immediate Consequences)
Mechanical Fastener Loosening and Structural Metal Fatigue Threaded fasteners and bolts on the remote control lawn mower shake loose over time, back out of their threaded housings, or even shear off completely under continuous high-frequency vibration. Frame weld joints crack, and heavy-duty structural metal components on the mower develop microscopic fatigue fractures due to sustained operational shockwaves.
Broken Micro-Solder Joints on Control Boxes and Circuit Boards (The Silent Electrical Killer) Continuous vibration knocks loose fine solder joints on delicate electronic components like capacitors and power relays inside the remote control lawn mower main controller, receiver module, and motor drivers. Terminal connectors shake loose within the remote control lawn mower electrical control enclosure, causing poor electrical contact, sudden control signal jumps, intermittent machine shutdowns, or destructive electrical arcing and terminal burning.
Wire Harness Wear and Short or Open Circuits Continuous mechanical friction between the internal wire harness and the sharp edges of the remote control lawn mower metal chassis slowly wears away the protective insulating outer sheath. Exposed wire harness conductors rubbing against bare metal lead directly to erratic control signal interference, blown electrical fuses, or direct grounding short circuits across the mower.
- Deep Chain Reactions in Mowers (How Failure A Triggers Failure B)
The Chain Reaction: Loose Bolts -> Wire Harness Friction against the Chassis -> Main Controller Short Circuits and Burns Out How it develops: When the mounting bolts securing the electrical control box or wire harness clamps soften and loosen on a remote control lawn mower, the wire harness begins rubbing directly against the metal chassis frame during high-vibration cutting operations. Over time, this continuous high-frequency vibration slices completely through the outer rubber insulation layer.
Once the exposed wire core touches the grounded remote control lawn mower chassis, it triggers an instant high-voltage short circuit that surges backward through the wiring network, instantly burning out the expensive remote control lawn mower main control board.
- The Comprehensive Diagnostic Method for Pinpointing Mower Vibration Sources
Static Inspection (Engine Off, Blades Disengaged) Inspect the Cutter Deck: Carefully check the remote control lawn mower cutter deck for broken, chipped, missing blades, bent blade shafts, or tightly tangled heavy grass and wire wrapped around the rotational shaft. Check Fasteners: Use a calibrated torque wrench to sample critical mounting bolts on the remote control lawn mower engine mounts, blade holder assemblies, and main electrical control box to ensure no fasteners have loosened.
Isolated Dynamic Testing (Process of Elimination) Test A (Engine Drive Only Test): Start the mower engine on flat ground without engaging the blade system (PTO OFF). Observe the remote control lawn mower at idle and high RPM for unusual operational noises or machine frame vibration. Diagnostic Result: If high vibration exists during this isolated engine test, the root issue lies directly within the remote control lawn mower engine itself, engine mounting dampeners, or crankshaft.
Test B (Cutting System Test): Position the machine in a clear, open area and engage the remote control lawn mower blades (PTO ON) while keeping the vehicle stationary on the ground. Diagnostic Result: If intense vibration starts immediately upon blade engagement, the issue is 100% located within the remote control lawn mower blade shaft, individual blade balance, or drive pulleys.
Electrical and Wiring Inspection Focus closely on the internal mounting points inside the main remote control lawn mower control box, inspecting all plug connectors and wiring terminals to guarantee every connection remains tight. Inspect all wire harnesses running along metal frame edges for early signs of outer jacket wear or insulation breakdown caused by remote control lawn mower operation.
Preventive Maintenance and Field Best Practices Thread Locking: Apply medium-strength threadlocker (such as Loctite 243) on all critical structural fasteners and mounting bolts across the remote control lawn mower to prevent vibration back-out. Dynamic Balance Upkeep: Regularly inspect individual blade wear patterns and ensure opposing remote control lawn mower flail blades or rotary blades are weighed and balanced symmetrically in matching sets before reassembly.
In practical field service and technical support operations, we frequently encounter cases where remote control lawn mower operational symptoms are completely misdiagnosed by operators and technicians:
Overlooking the Link Between Vibration and Loose Electrical Connections We often encounter real-world field cases where generator wiring disconnects unexpectedly or seemingly tight terminal screws fall off a remote control lawn mower completely during heavy field operations. Many technicians assume the screw or bolt was under-torqued during factory assembly, or that the wire harness was manufactured too short and pulled loose by force. They completely miss the fundamental physical reality that severe machine vibration was the true root cause forcing those threaded bolts and wiring harness clamps to back out over time.
The Misguided Fix of Adding Extra Engine Dampeners When noticing severe operational vibration on a mower, many equipment owners instinctively assume the engine is simply aging or running rough. They attempt to solve the symptom by installing soft, unnecessary rubber dampeners directly underneath the remote control lawn mower engine base. This approach is fundamentally incorrect and dangerous. Adding extra dampening material underneath the engine does not fix the original rotational imbalance originating at the cutter deck; instead, it masks dangerous underlying structural issues and fails to address the root mechanical failure on the remote control lawn mower.
Core Takeaway: For any professional mower (especially remote control flail mowers operating on rugged steep terrain), we must maintain a clear diagnostic perspective—the vast majority of severe, abnormal machine vibrations stem directly from dynamic mechanical imbalance inside the cutting system (damaged blades, eccentric blade shafts, or missing blade teeth). Always isolate and inspect the remote control lawn mower cutting deck first before making unnecessary mechanical modifications to your mower engine.
